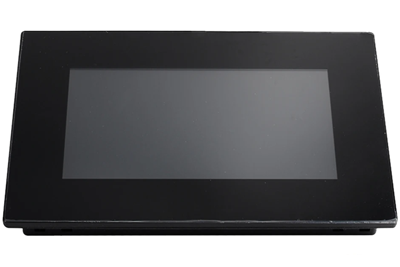

Crane Screen Control Unit
# Product Details
DESCRIBING
Designed and manufactured with 100% Turkish engineering specifically for platform cranes with baskets, the CSC01 (Crane Screen Controller) screen control unit provides touch control of all UART input screens from 4.3 inches to 10.1 inches and visualizes the data coming from the central processor via data transfer to the central processor via CANBus.
GENERAL FEATURES
- Similar design features for different sizes of screens as per need
- High sensitivity touch screen capability
- 50kb-1Mbit CANBus communication.
PRODUCTS
| Product Code | Product Description | |
|---|---|---|
| RMG-CSC01-43 | 4.3 Inch Screen Controller | |
| RMG-CSC01-51 | 5.1 Inch Screen Controller | |
| RMG-CSC01-70 | 7.0 Inch Screen Controller | |
| RMG-CSC01-11 | 10.1 Inch Screen Controller |
TECHNICAL SPECIFICATIONS
| Feature | RMG-CSC01 | |
|---|---|---|
| Working Voltage | 9V – 36V DC | |
| Working Temperature | -30°C/+75°C | |
| Weight | 480gr | |
| IP Protection | IP54 | |
| Communication | CANBus | |
| Touch Screen | Var | |
| Screen Dimensions | 4.3″, 5.0″, 7.0″, 10.1″ | |
| Resolution | 480*272, 800*480, 1024*600 | |
| Processor Speed | 200 MHz | |
| RTC | Yes | |
| Reverse Voltage Protection | Yes |
APPLICATION AREAS
- Basket Platform Cranes
- FlyBom systems
- Fire trucks
- Agricultural Vehicles
