Crane Chassis Balance System
# Product Details
DESCRIBING

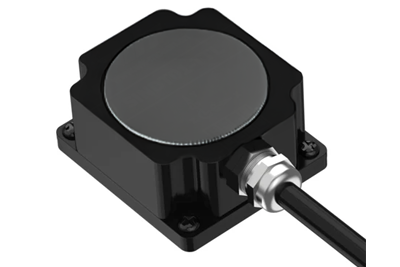

Designed and manufactured with 100% Turkish Engineering specifically for platform cranes with baskets, the CCB01 (Crane Chassis Balance) body angle control unit provides a safer working environment by being mounted on different parts of the crane in scenarios where the body angle is of critical importance and transmitting the angle of the area in which it is located to the central controller.
GENERAL FEATURES
- Angle measurement with high precision and measuring speed
- Vibration and shock resistant design with IP67 protection
- 50kb-1Mbit CANBus communication.
PRODUCTS
| Product Code | Product Description | |
|---|---|---|
| RMG-CCB01-00 | Crane Chassis Balance System |
TECHNICAL SPECIFICATIONS
| Feature | RMG-CCB01 | |
|---|---|---|
| Working Voltage | 9V – 36V DC | |
| Working Temperature | -40°C/+85°C | |
| Weight | 110gr | |
| IP Protection | IP67 | |
| Communication | CANBus | |
| Analog Output | No | |
| Working Angles | 2 axis | |
| Refresh Rate | 100ms | |
| Working Angle | -65° +65° | |
| Reverse Voltage Protection | Yes |
APPLICATION AREAS
- Basket Platform Cranes
- FlyBom systems
- Fire trucks
