Crane Remote Controller Unit
# Product Details
DESCRIBING

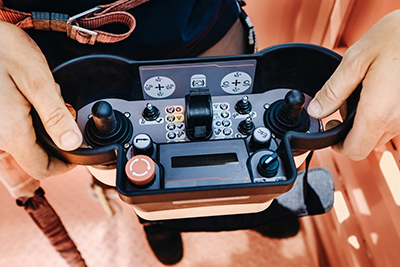

Analog and digital data received from 2-way, 4-way, joystick, finger joystick, thumbwheel joystick, buttons, switches, emergency stop buttons with different operating principles are transmitted to the central processor via CANBus communication or 2.4GHz wireless communication with the CRC01 (Crane Remote Controller) remote control unit, which is designed and manufactured with 100% Turkish Engineering specifically for basket platform cranes.
GENERAL FEATURES
- Different numbers of inputs and outputs can be changed according to need.
- Common input and calibration capability for different types of joystick inputs (two-way, four-way)
- 50kb-1Mbit CANBus communication.
- Customizable remote control production according to manufacturer's needs
- Delivery of only electronic controllers upon manufacturer's request
- Optional 2.4 GHz wireless communication, spare battery and charging unit.
PRODUCTS
| Product Code | ||
|---|---|---|
| RMG-CRC01-01 | Crane Remote Controller | |
| RMG-CRC01R-01 | Crane Wireless Remote Controller |
TECHNICAL SPECIFICATIONS
| Feature | RMG-CRC01 | |
|---|---|---|
| Working Voltage | 9V – 36V DC | |
| Working Temperature | -40°C/+85°C | |
| Weight | 480gr | |
| IP Protection | IP67 | |
| Communication | CANBus | |
| Capacitive Touch Screen | Opsiyonel | |
| 0-5V Input | 32 | |
| UART | 1 | |
| 0-24V Out | 3 | |
| 2.4 GHz Wireless Communication | Opsiyonel | |
| Battery Input | Opsiyonel | |
| Battery Indicator | Opsiyonel | |
| Reverse Voltage Protection | Yes |
- Basket Platform Cranes
- FlyBom systems
- Fire trucks
- Concrete Pumps
rmg-crc01
