Basket Balance Control Unit
Crane Basket Balance Control Unit
# Product Details
DESCRIBING

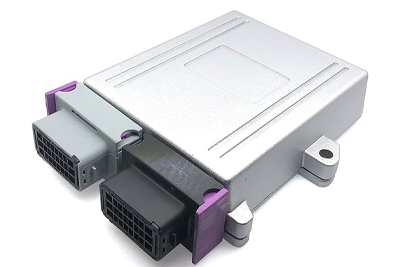

Designed and manufactured with 100% Turkish engineering specifically for basket platform cranes, the CBB48 (Crane Basket Balance Controller) basket balance control system uses a built-in angle sensor to detect the basket angle and automatically balance it. It also functions as an auxiliary controller, sharing sensor data with the central controller and executing incoming commands through its built-in sensor inputs and control outputs.
GENERAL FEATURES
- PWM Valve driver with PWM coil driver for basket control
- Connection between the basket and the central processor with 4 cables.
- 50kb-1Mbit CANBus communication.
- Internal sensor and switch inputs.
- Internal EEPROM allows for application-specific, system-independent reprogramming.
PRODUCTS
| Product Code | Product Description | |
|---|---|---|
| RMG-CBB48-04-5V | 48 Pin Out DC 5V 4 Valf Controller | |
| RMG-CBB48-04-24V | 48 Pin Out DC 24V 4 Valf Controller |
TEKNİK ÖZELLİKLER
| Feature | RMG-CBB48 | |
|---|---|---|
| Working Voltage | 9V – 36V DC | |
| Working Temperature | -40°C/+85°C | |
| Weight | 620gr | |
| IP Protection | IP67 | |
| Communication | CANBus | |
| Working Angles | 2 axis | |
| 4-20mA Input | 4 | |
| 0-32V Input | 8 | |
| PWM Valf Output | 4 | |
| PWM 10A Low Side Output | 8 | |
| Low Side Digital Output | 12 | |
| Internal EEPROM | Yes | |
| Reverse Voltage Protection | Yes |
APPLICATION AREAS
- Basket Platform Cranes
- FlyBom systems
